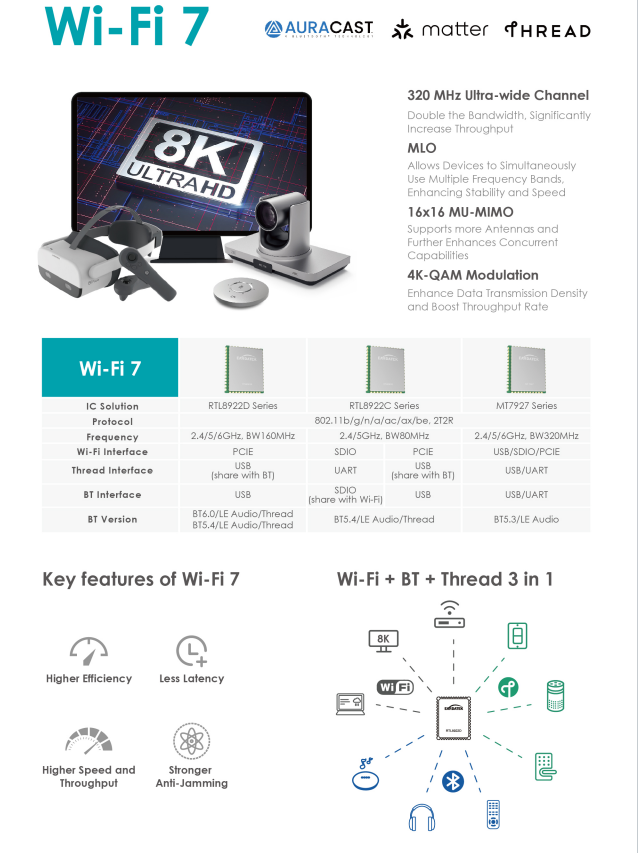

Wi-Fi 7

WiFi 7 (IEEE 802.11be) is the seventh generation of the 802.11 standard since 1997. It packs all the benefits of WiFi 6/6E and expands several existing standards to a whole new level, such as 320 MHz bandwidth and 4K-QAM. And it introduces some revolutionary features like Multi-Link Operation, Multi-Resource Units (MRU) and Puncturing. As WiFi has become indispensable in daily life from work to home, WiFi 7 reshapes your WiFi experiences with a huge leap into the future.

As for WIFI 7, Earda provide  different solution, which can good meet different product requirement. Below pls find details:

EWN-8922D Series (EWN-8922DES4AA)

1. Wi-Fi

   • Protocol: IEEE 802.11 a/b/g/n/ac/ax/be (2T2R)
   • Frequency Bands: 2.4GHz, 5GHz, 6GHz
   • Bandwidth/Speed: 20/40/80/160MHz, up to 2402Mbps
   • Interface: PCIe Gen2 1 Lane
   • Performance: Tx Power up to 20±2dBm; Rx Sensitivity down to -96dBm (Typ.); supports WPA3, TWT

2. Bluetooth

   • Protocol: BT v2.1+EDR/3.0/4.2/5.4 (Dual-mode LE+BR/EDR)
   • Frequency: 2400-2483.5MHz
   • Speed: 1/2/3Mbps
   • Interface: USB 2.0
   • Performance: Tx Power 6dBm (Typ.); Rx Sensitivity < -89dBm; supports LE Audio

3. IEEE 802.15.4

   • Protocol: IEEE 802.15.4-2015, supports Zigbee 3.0, Thread v1.3+
   • Frequency: 2405-2480MHz
   • Modulation: OQPSK
   • Interface: USB 2.0
   • Performance: Tx Power 6dBm (Typ.); Rx Sensitivity < -89dBm; built-in hardware encryption



RTL8922C Series | To Be Released

• IC Solution: RTL8922C Series
• Protocol: 802.11b/g/n/a/ac/ax/be 2T2R
• Frequency: 2.4/5GHz, BW80MHz
• Wi-Fi Interface: SDIO/PCIE
• Thread Interface: UART, USB (shared with BT)
• BT Interface: USB, SDIO (shared with Wi-Fi)
• BT Version: BT5.4/LE Audio/Thread
